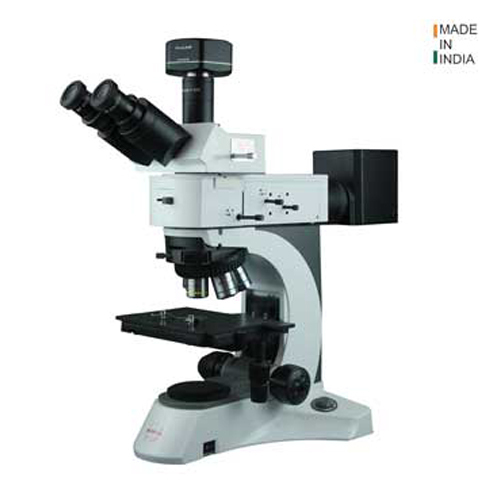

Part NamePart CodeDescription BodyRXR4MMBRugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller & ON/OFF switch, rubber feet, slot for Ana/Pol Optical SystemRXR4MiOSUniversal infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (60mm), parcentered, suitable for Brightfield, Darkfield, POL etc Reflected IlluminationRXR4MH30Halogen 6V -30W (Life 2000 hrs.) Viewing HeadRXR4MB30STBinocular inclined at 30, siedentopf head, rotatable through 360, IPD - from 48-76, fixed diopter

इनवर्टेड मेटलर्जिकल माइक्रोस्कोप RMM-77

A latest Binocular inverted Metallurgical Microscope equipped with vertical illuminator having centering provision, field and aperture, diaphragm and slot for dropping filters, built-in base, variable solid state transformer, large sturdy stage with co-axial arrangement for X-Y axis movements, coarse and fine graduated focusing knobs.

This is a real compact size Inverted Metallurgical Microscope for Brightfield. The Microscope is of durable design, simple to operate, with high contrast observation & image capture. It is ideal for viewing metallographic, electronic components as well as use at product sites in the material field and quality control departments. The optical system providing excellent optical functions. It is widely used in institutes and laboratories to observe / identify the structure of various metals & alloys. Simply place the specimen, face down, on the stage, switch on the illuminator, rotate the required objective into position & you are ready to observe or photograph. All components of the illuminating system are completely built-in and remain permanently aligned.

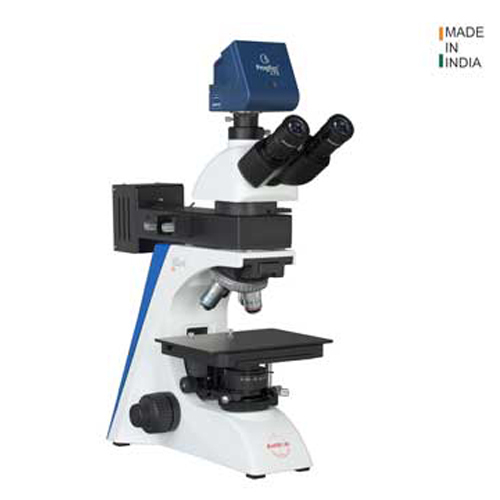

BodyRXR5MMBRugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller & on/off switch, rubber feet, slot for DIC or Ana/Pol & slot for filter slider having ND & yellow filter, suitable for reflected & transmitted illumination. Optical systemRXR5MiOSUniversal infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (45mm), parcentered, suitable for bright field, Dark field, Polarizing, Fluorescence & DIC Reflected IlluminationRXR5MHL50Halogen 12V -50W (Life 2000 hrs.) Viewing HeadRXR5MB30Binocular inclined at 30, siedentopf head, rotatable through 360, IPD - from 48-76, fixed diopter NosepieceRXR5M-5NInward tilted, interchangeable precise quintuple revolving on multiple ball bearing
